RFID Label

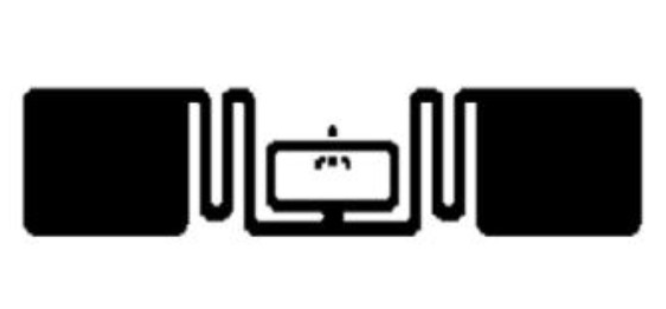

Middle Size 15×70mm UHF RFID Inlay/label LAB1570 For Apparel Retail Industry

  • The product name:Middle Size 15×70mm UHF RFID Inlay/label LAB1570 For Apparel Retail Industry
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2021-06-30 10:52:34
  • CONTACT

Product Description



This WET INLAY is specially developed for apparel and retail industry.Optional surface material for wide application;Pre-encoding and pre-printing services for easy deployment



Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipR6P/R6
MemoryUHF:EPC 128bits,USER 0bits,TID 64bits
Surface PaperNO
ApplicationApparel/retail
Mounting wayAttaching to the hangtag/mechandise surface
Read rangeRFID:Up to 8 meter by fixed reader; Up to 4 meter by handheld reader
Frequency860MHZ to 960MHZ

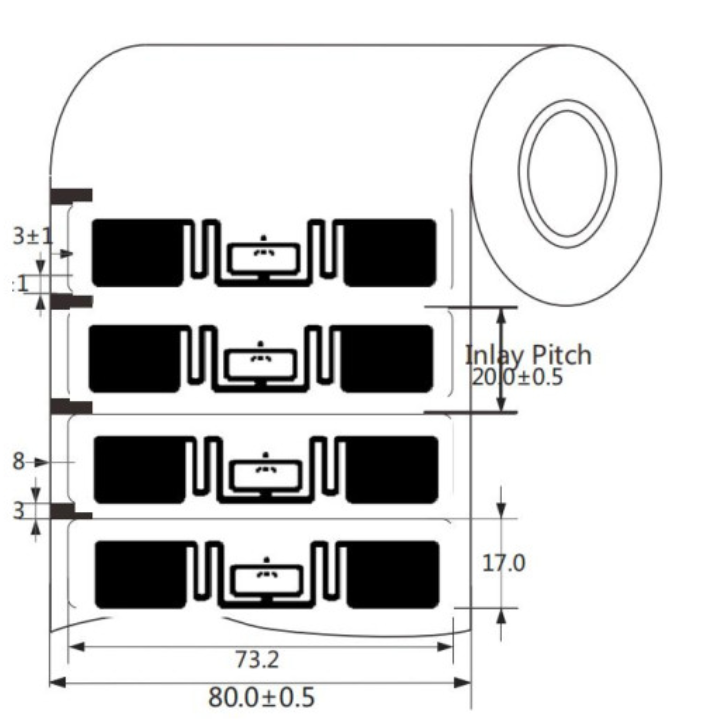

SizeAntenna size 15× 70 mm;Label size:17× 72mm
ESD:≤2KV
Storage temp-30℃ to 70
Operation temp-30℃ to 70
Storage Humidity:30%~70%
Warranty1 Year


Small Size 15×70mm UHF RFID Inlay Tag For Apparel Retail Industry 0
