RFID Hard tag

HF Tiny MicroChip ISO14443A NFC Mini FPC Tag 5x5mm Anti Counterfeiting FPCN02

  • The product name:HF Tiny MicroChip ISO14443A NFC Mini FPC Tag 5x5mm Anti Counterfeiting FPCN02
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:14:31
  • CONTACT

Product Description

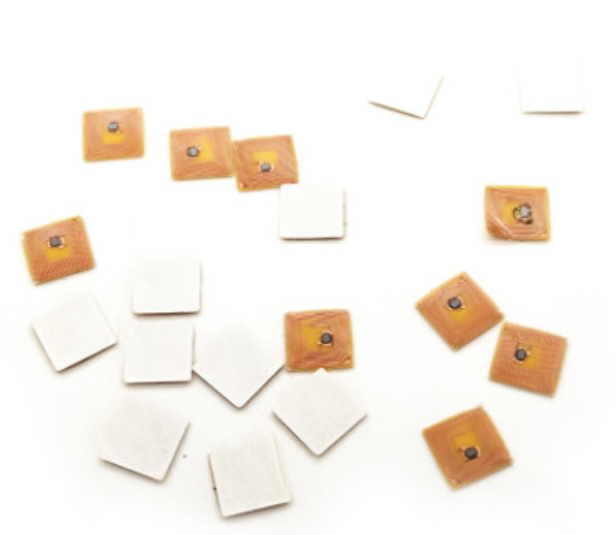

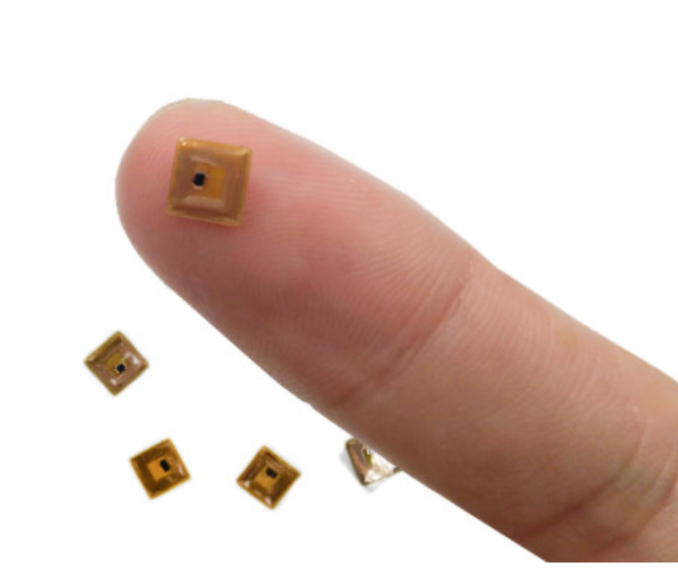

HF Tiny Micro Chip ISO14443A passive Soft NFC FPC Mini Tag 5x5mm for Anti Counterfeiting , NFC tag with FPC material

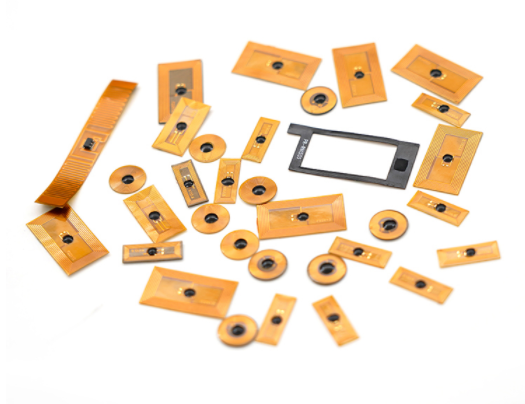

The Micro FPC NFC Sticker Tags are specially designed in small sizes such as 5*5mm, Dia 9mm, 8*16mm, 18*9mm, 12*22mm etc. They are all available for long range tracking application, could be used for access control, asset management, asset tracking. Tiny items tracking, such as surgical tools, pharmaceuticals or other medical supplies; for brand protection of small, high-value products; and even for the management of small animals. The application of the micro FPC NFC sticker tags are required for any small size tracking.



Item
HF Tiny Micro Chip ISO1443A passive Soft NFC FPC RFID Tag 5x5mm for Anti Counterfeiting
Chip
® 213
Substrate Material
   FPC
Reading Range
3-15cm depend on your reader and antenna size
Operating Frequency
13.5MHZ
Surface Material
PET
Antenna Material
Copper Etching
Protocol
ISO/ICE 14443A
Antenna Size
4.7*4.7 mm(±0.2mm)
Tag size
5.2*5.2 mm(±0.5mm)
Available size
dia 9mm/16x6mm/18x9mm/22x12mm
Characteristics
waterproof, Chemical
Resistance,Acid & alkali resistance.
Write Cycle
100,000 cycles
Data EEPROM Retention
10 years
ESD Voltage Immunity
± 2KV
Operating Temperature
-25 ℃~ 75 ℃
Relative Humidity
10% ~ 95%(As Less Reading As More Humidity)
Application
Widely used in NFC products, electronic toys,electronic,products,food,tobacco,alcohol
drugs,cosmetics,spare parts and other items as well as some embedded applications
for security and trace-ability.
Packing Material
Anti -static PE + Foam stuff + Anti -static Bag
