RFID Laundry tag

Ucode 8 Flexible RFID Laundry Tag LAU001 200 Times Washing Cycles LAU001

  • The product name:Ucode 8 Flexible RFID Laundry Tag LAU001 200 Times Washing Cycles LAU001
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 19:08:33
  • CONTACT

Product Description

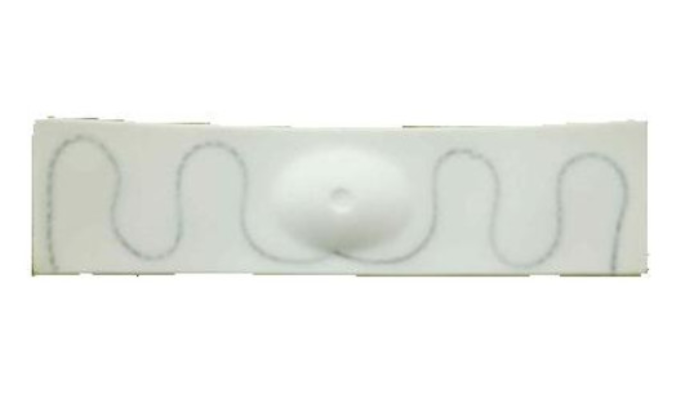

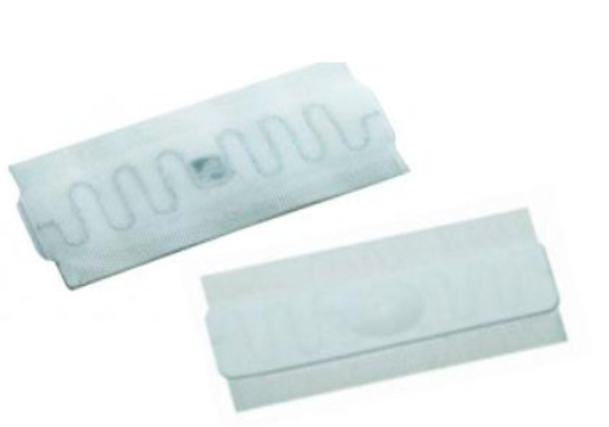

Silicon gel laundry tag LAU001 white color , 200 times washing cycles , Washable Waterproof Flexible laundry tag



The Laundry Tag LAU001 is the innovative tag for industrial Laundries. It is designed specially to meet the rigors of high volume, high pressure wash flows to help extend the life of your assets. These soft, flexible and thin tags can be applied quickly and easily in multiple ways according to your wash process needs, and provides extreme durability more than 200 washing cycles and reliable performance



Specialities/Features

ISO/IEC 18000-6C EPC Class l Gen2

Two assurances for endurance and consistent performance

Unique chip encapsulation and antenna design

Professional choice of antenna material

Innovation silicone housing masks

Provide comfortable and flexible usage

Protect RFID chip and antenna

Personalized printing available to enhance company awareness

Easy application

Attach discreetly via hem or embed

Anti-static electricity to provide stable performance

Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipM4QT/M4E
MemoryUHF:EPC 128bits,USER 512bits,TID 96bits
Application surfaceTowel/Bedsheet/Bathrobe/Clothing
Washing cycles200 wash
Mounting wayInsert into seam and sew
Read rangeUp to 5 meter by fixed reader; Up to 2.5 meter by handheld reader
Frequency860MHZ to 960MHZ
Size65 x 16x2.7mm
Weight1.6 G
MaterialSilicon gel+Fabric
ColorWhite
IP RatingIP68
Storage temp-40℃ to 80
Operation tempWashing :90° C 15 min; Drying :160°C 30 min; Ironing :200°C 10 sec ; Tunnel finisher:185° C
30 min; Extractor press :60 Bars (60N/cm²)
Warranty1 Year
