RFID Laundry tag

Ucode 8 Heat Sealing Durable UHF Laundry Tag Single Layer LAU0004H

  • The product name:Ucode 8 Heat Sealing Durable UHF Laundry Tag Single Layer LAU0004H
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 19:14:03
  • CONTACT

Product Description

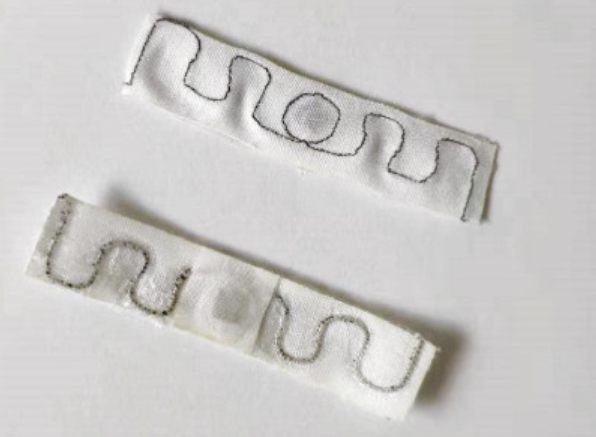

Heat seal UHF Laundry tag LAU004H, Silicon gel laundry tag white color , 200 times washing cycles , duarable laundry tag



Laudnry tag LAU004H is the lattest Linkwin`s series for textile management. The ultra-thin and soft tag can be easily heat sealing. It offers excellent performance and a cost-effective solution for industrial laundering applications and is designed to withstand the impact of high volume and high pressure wash cycles.



Specialities/Features:


ISO/IEC 18000-6C EPC Class l Gen2
Easy to apply
Ultra-thin, flexible, soft material
Mounting way: Heat sealing
Excellent reading performance
High density bulk reading
Reading distance of up to 5 meters
Reliable and consistent performance
Anti-static electricity, high water, chemical, heat and
pressure resistance
Personalized printing available



Application:
Bed linens and towels in hospitals or hotels
Uniform and work wear management
Linen asset tracking, supply and inventory management



Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chipucode 7/ucode 8/M4QT/M4E
MemoryUHF:EPC 128bits,USER 512bits,TID 96bits
Application surfaceTowel/Bedsheet/Bathrobe/Clothing
Washing cycles200 wash
Mounting wayHeat sealing
Read rangeUp to 5 meter by fixed reader; Up to 2.5 meter by handheld reader
Frequency860MHZ to 960MHZ
Size70 x 15x1.6mm
Weight1.3 G
MaterialFabric
ColorWhite
IP RatingIP68
Storage temp-40℃ to 80
Operation tempWashing :90° C 15 min; Drying :160°C 30 min; Ironing :200°C 10 sec ; Tunnel finisher:185° C
30 min; Extractor press :60 Bars (60N/cm²)
Warranty1 Year
