Industrial Outdoor RFID On Metal Tag Grey Color ABS Material OMT8520

The product name：Industrial Outdoor RFID On Metal Tag Grey Color ABS Material OMT8520
QQ：Whatsapp:0086-13906526515
Telephone: 0086-13906526515
Email: info@linkwinsmart.com
Time: 2022-04-14 18:58:33
CONTACT

Product Description

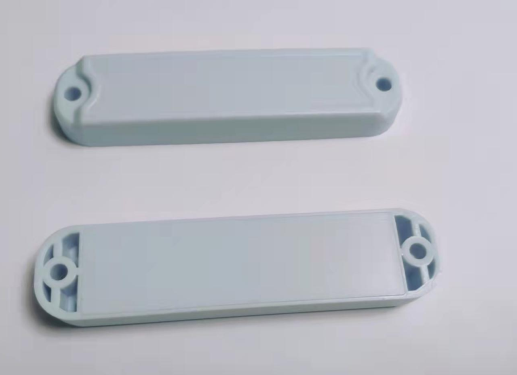

Industrial outdoor on metal tag OMT8520 , RFID on metal tag Grey color , RFID non-metal tag ABS material

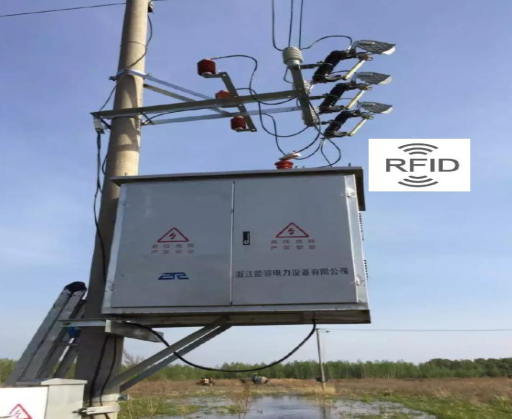

The tag is especially designed for Industrial outdoor asset management ,with IP68 and excellent read range,it can be used on metal and non-metal surface.widely used in outdoor large equipment and asset management,Pallet and shelf management in warehouse management,street lamp and traffic lamp post and other public facilities management and so on.

Specifications
Protocol	ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chip	Alien H9
Memory	EPC: 96bit User memory :688bit
Application surface	Metal surface or non-metal surface
Mounting way	Rivet (4MM)Screw(M4.0) or 3M adhesive
Read range	On metal surface(US)Up to 12 meter by fixed reader; Up to 6 meter by handheld reader Non-metal surface(US)Up to 7 meter by fixed reader; Up to 3.5 meter by handheld reader On metal surface(EU)Up to 6 meter by fixed reader; Up to 3 meter by handheld reader Non-metal surface(EU)Up to 6.5 meter by fixed reader; Up to 3.5 meter by handheld reader
Frequency	EU:865-868MHZ,US:902MHZ~928MHZ
Size	852011mm
Weight	15 G
Material	ABS
Color	Grey
IP Rating	IP68
Storage temp	-40℃ to 100 ℃
Operation temp	-40℃ to 85 ℃
Warranty	1 Year
