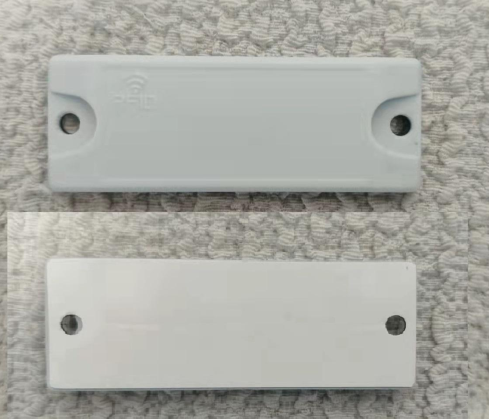

By using Single injection finished technology,OMT7025 has high waterproof range IP68
because of no welding seam and with special material and design,so it can work in
harsh environment,it is widely used in electric asset management and construction
industry and so on
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | ALIEN HIGGS-EC |
| Memory | EPC 128bits,USER 128bits,TID 32bits,UID 80bits,Acces PWD 32bits,Kill PWD 32bits |
| Application surface | Metal surface/Concrete |
| Mounting way | screw or back adhesive |
| Read range | On metal surface: Up to 5meter by fixed reader; Up to 3 meter by handheld reader Concrete:Up to 0.5meter by fixed reader; Up to 0.3 meter by handheld reader |
| Frequency | 860MHZ to 869MHZ/902MHZ to 928MHZ |
| Size | 70*25*5 mm,Hole diameter:4mm |
| Weight | 10 G |
| Material | High performance polyester carbonate |
| Color | Grey or customized |
| IP Rating | IP68 |
| Chemical resistance | Alcohol resistance+Oil Resistance+corrosion resistance+vibration resistance 50HZ+abrasion resistance |
| Resistance to pressure | 60bar (1000N) |
| Storage temp | -40℃ to 80 ℃ |
| Operation temp | -40℃ to 150 ℃; 140℃ 1 hour;180℃ 0.5 hour;200℃ 15 seconds |
| Warranty | 1 Year |
