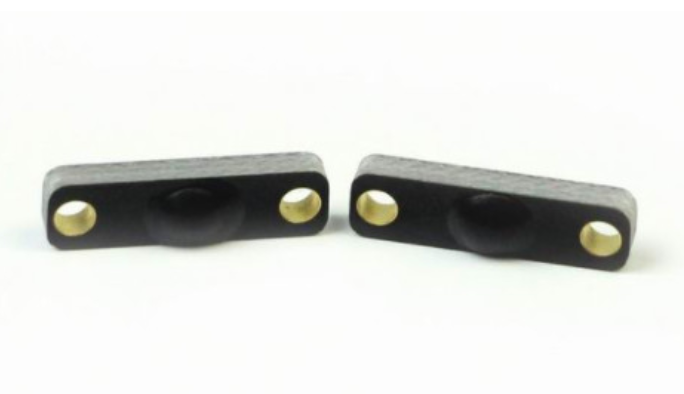

Variable Size EPC Long Range RFID Miniature UHF Anti Metal Rugged Tag OMT1004 , RFID PCB on metal tag
On-Metal Tag OMT1004 is mainly used for asset management and can be directly attached or fixed with screws on the metal surface. Its steady shock resistant,waterproof, dustproof performance makes it suitable for metal shelf warehousing management and other asset management
| Functional Specifications: | |
| RFID Protocol: | EPC Class1 Gen2, ISO18000-6C |
| Frequency: | (US)902-928MHz, (EU) 865-868MHz |
| IC Type: | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles: | 100,000 times |
| Functionality: | Read/Write |
| Data Retantion: | Up to 50 Years |
| Applicable Surface: | Metal Surfaces |
| Read Range: | 135cm - (EU) 865-868MHz, on metal 135cm - (US) 902-928MHz, on metal |
| Read Range: | 75cm - (EU) 865-868MHz, on metal 90cm - (US) 902-928MHz, on metal |
| Warranty: | 1 Year |
| Physical Specifications: | |
| Size: | 10*4mm *T2.0 mm( hole 2mm*1) |
| Thickness: | 2mm with IC bump |
| Material: | FR4(PCB) |
| Colour: | Black |
| Mounting Methods | 3M glue or Hole |
| Weight: | 0.5g |
| Environmenal: | |
| IP Rating: | IP68 |
| Storage Temperature: | -40°С to +150°С |
| Operatino Temperature: | -40°С to +100°С |
| Certifications: | Reach Approved, RoHS Approved, CE |
