RFID desktop reader LRE-D02 , Wholesales USB 860~960MHz EPC GEN2 desktop uhf rfid reader writer access control reader
LRE-D02 is a high performance UHF desktop reader based on High performance read and write engine design,Fully meet protocol EPCglobal C1 Gen 2 ISO 18000-6C, Combined with a unique multi-label processing algorithm, At the same time, ensure the RFID tag can be read and write quickly,It is widely used in clothing, retail, medical, anti -counterfeiting, books, archives application
| Mechanical electrical performance | |
| Dimension: ( MM) | 300( L) *200( W) *30( H) |
| Antenna | Near field circular polarization |
| Shell | Acrylic panel, metal bottom shell, the whole machine is black |
| Performance Index | |
| Tag / Transponder Protocols | EPCglobal C1 Gen 2 ISO 18000-6C |
| Frequency | 865~868MHz/902～928MHz( Can be adjusted according to different countries or regions) |
| Frequency modulation | FHSS or fixed-frequency, can be set by software |
| RF output | from 0 dBm to 26dBm* with +/-1dBm |
| Reading speed | >50 tags/sec |
| Tag Buffer Size | 330 tags @ 96 bit EPC/100@ 96 bit EPC |
| Tag RSSI | Supported |
| Power | 12 V/3A DC or USB |

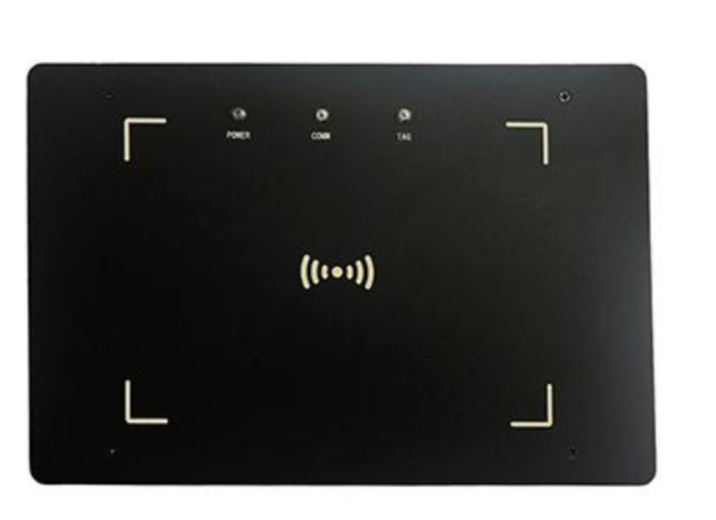

| Indicator light | POWER:Red LED, Power indicator COMM:Green LED ,Communication indicator TAG: Blue LED , Tags operation indicator |

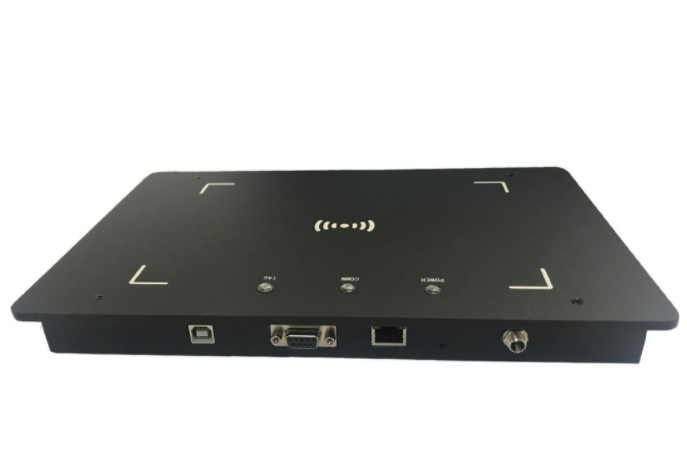

| Communication interface | RS232 / USB / RJ45 optional |
| Environment | |
| Operating Temp | -20～+55℃ |
| Storage Temp | -20～+85℃ |
| Humidity | 5%～95%RH, Non-condensing |
