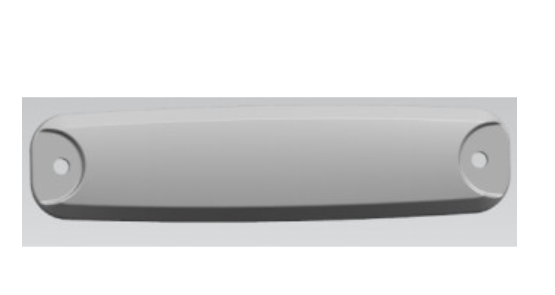

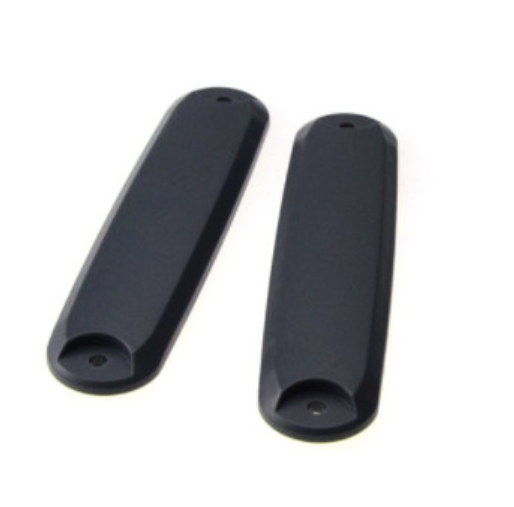

Customized barcode logo printing asset management anti metal rfid tag for nfc industry equipment , RFID UHF on metal tag
Feature
1. The reading distance is far, and the 8dBi reader can reach more than 8 meters.
2, tag recognition sensitivity is high, can support multi-tag recognition at the same time
3, the end of the label comes with rivet holes, can be installed in wood, plastic and metal tray
4, using ABS engineering plastic packaging, anti-humidity, anti-corrosion, wear-resistant, impact-resistant
5, metal surface reading performance is good, suitable for harsh environments, IP67 high protection level
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | R6/R6P |
| Memory | EPC 128bits,USER 0bits,TID 96bits |
| Application surface | Metal surface/Non-metal surface |
| Mounting way | M4 pan head screw or 3M adhesive |
| Read range | On metal surface: Up to 7 meter by fixed reader; Up to 3.5 meter by handheld reader No metal surface:Up to 4 meter by fixed reader; Up to 2 meter by handheld reader |
| Frequency | 860MHZ to 869MHZ/902MHZ to 928MHZ |
| Size | 103*25*6.8mm |
| Weight | 10 G |
| Material | ABS |
| Color | Grey or customized |
| IP Rating | IP67 |
| Storage temp | -40℃ to 80 ℃ |
| Operation temp | -40℃ to 80 ℃ |
| Warranty | 1 Year |
