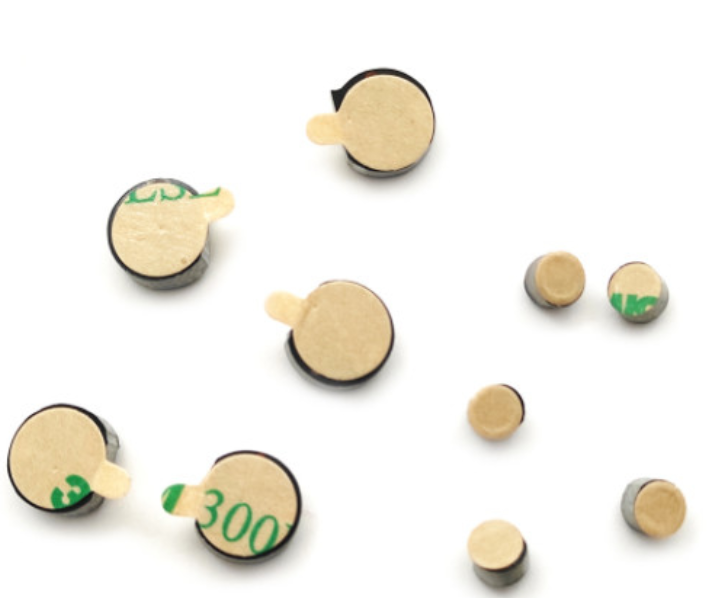

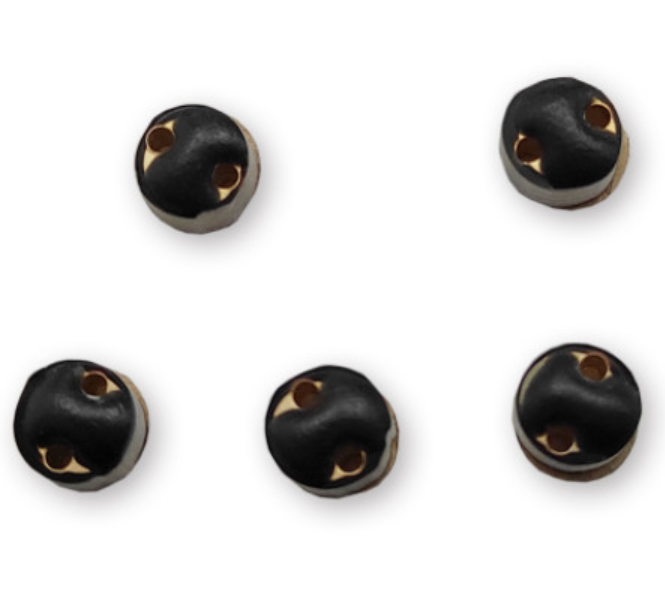

Dia 5mm Mini Tag Micro Small RFID Hard Tag Anti-metal PCB UHF Tag for tracking , RFID MINI PCB On metal tag
What Is RFID Tag?
A Radio Frequency Identification Tag (RFID tag) is an electronic tag that exchanges data with a RFID reader through radio waves. Most RFID tags are made up of at least two main parts. The first is an an antenna, which receives radio frequency RF) waves. The second is an integrated circuit (IC), which is used for processing and storing data, as well as modulating
and demodulating the radio waves received/sent by the antenna.
|
Item |
Dia 5mm Mini Tag Micro Small RFID Hard Tag Anti-metal PCB UHF Tag with Alien H3 |
|
Chip |
Alien H3 |
|
Substrate Material |
PET |
|
Reading Range |
0.5-1 meters depend on your reader and antenna size |
|
Operating Frequency |
860-960MHZ |
|
Surface Material |
FR4(PCB) |
|
Antenna Material |
Aluminum Etching
|
|
Protocol |
ISO18000-6C |
|
Antenna Size |
3mm(±0.2mm) |
|
Tag size |
Dia 5mm |
|
Available size |
5mm/10mm |
|
Characteristics
|
waterproof, Chemical Resistance,Acid & alkali resistance. |
|
Write Cycle |
100,000 cycles |
|
Data EEPROM Retention
|
10 years |
|
ESD Voltage Immunity |
± 2KV |
|
Operating Temperature
|
-25 ℃～ 75 ℃ |
|
Relative Humidity |
10% ~ 95%(As Less Reading As More Humidity) |
|
Application
|
Widely used in electronic toys,electronic,products,food,tobacco,alcohol
drugs,cosmetics,spare parts and other items as well as some embedded applications
for security and trace-ability.
|
|
Packing Material
|
Anti -static PE + Foam stuff + Anti -static Bag |
