Hangzhou Linkwin Smart Technology Co.,Ltd

RFID on metal tag

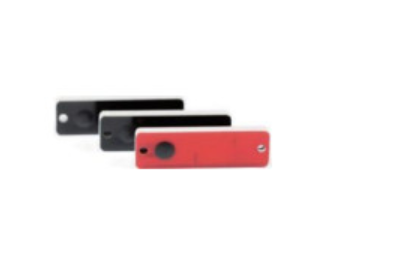

3mm Hole UHF PCB RFID On Metal Tag IP68 With Good Heat Resistance OMT3310

  • The product name:3mm Hole UHF PCB RFID On Metal Tag IP68 With Good Heat Resistance OMT3310
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:35:31
  • CONTACT

Product Description


UHF PCB on metal tag OMT3310 , Small size on metal tag , High IP grade IP68 tag , waterproof tag , anti-high temperature





On-Metal Tag OMT3310 is mainly used for asset management and can be directly attached or fixed with screws on the metal surface. Its steady shock resistant,waterproof, dustproof performance makes it suitable for metal shelf warehousing management and other asset management.





Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipH3
MemoryEPC 96bits,USER 512bits,TID 96bits
Application surfaceMetal surface
Mounting wayScrew or 3M adhesive
Read rangeOn metal surface: Up to 4 meter by fixed reader; Up to 2 meter by handheld reader
Frequency860MHZ to 869MHZ/902MHZ to 928MHZ
Size33*10*3.5 mm, hole size:3mm
Weight3G
MaterialFR4
ColorBlack or customized
IP RatingIP68
Storage temp-40℃ to 100
Operation temp-40℃ to 100
Warranty1 Year
