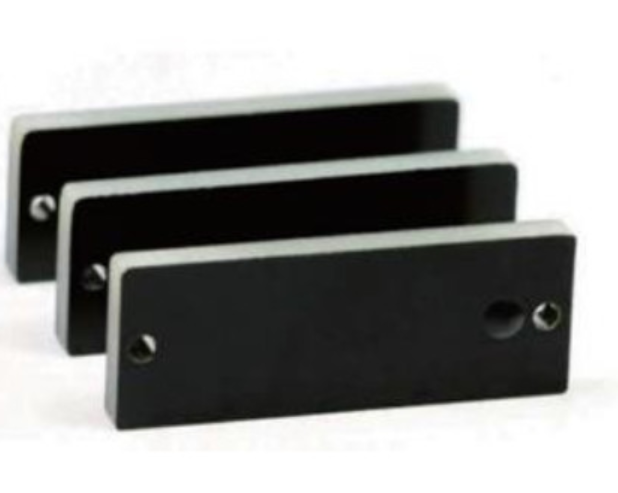

UHF PCB on metal tag OMT3613 , Small size on metal tag , High IP grade IP68 tag , waterproof tag , anti-high temperature
On-Metal Tag OMT3613 is mainly used for asset management and can be directly attached or fixed with screws on the metal surface. Its steady shock resistant,waterproof, dustproof performance makes it suitable for metal shelf warehousing management and other asset management.
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | H3 |
| Memory | EPC 96bits,USER 512bits,TID 96bits |
| Application surface | Metal surface |
| Mounting way | Screw or 3M adhesive |
| Read range | On metal surface: Up to 4 meter by fixed reader; Up to 2 meter by handheld reader |
| Frequency | 860MHZ to 869MHZ/902MHZ to 928MHZ |

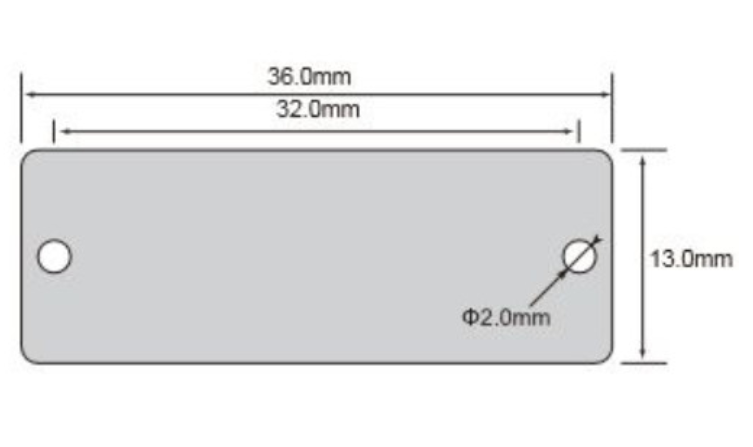

| Size | 36*13*3.5 mm, hole size:3mm |
| Weight | 3.5 G |
| Material | FR4 |
| Color | Black or customized |
| IP Rating | IP68 |
| Storage temp | -40℃ to 100 ℃ |
| Operation temp | -40℃ to 100 ℃ |
| Warranty | 1 Year |
