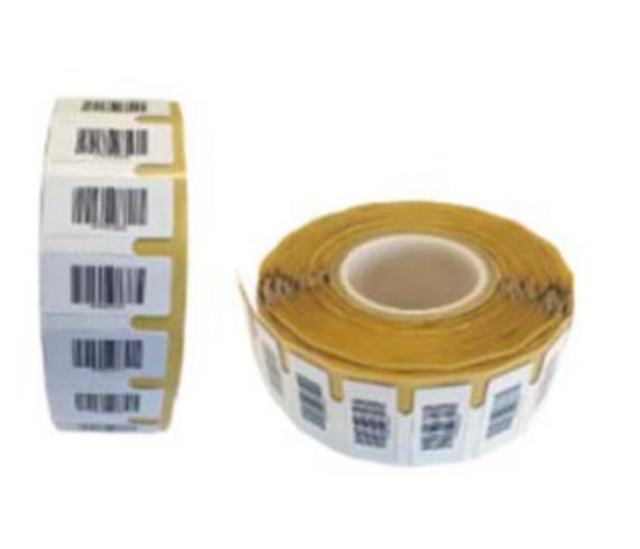

RFID UHF flexible and printable on metal label OMT008 , on metal tag , asset managment tag , IT asset management tag
On metal tag OMT008 is an on-metal label with flexible design and suitable for flat or curved metal or other multi surfaces .Offering with preprint and encoding or blank to be printed and encoded on-demand using RFID enabled thermal transfer printers, it is an excellent option for indoor applications that demand user flexibility and affordability.
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | R6P |
| Memory | EPC 128bits,USER 0bits,TID 48bits |
| Application surface | Metal surface/Non metal surface |
| Mounting way | 3M adhesive |
| Read range | Metal surface:Up to 8 meter by fixed reader; Up to 4 meter by handheld reader Non metal surface:Up to 4 meter by fixed reader; Up to 2 meter by handheld reader |
| Frequency | 865～868( EU) /902～928( US) |
| Size | 60x27x1mm |
| Weight | 1 G |
| Material | PET or according to custom`s request |
| Color | White |
| IP Rating | IP68 |
| Storage temp | -40℃ to 70 ℃ |
| Operation temp | -40℃ to 100 ℃ |
| Warranty | 1 Year |
Application:

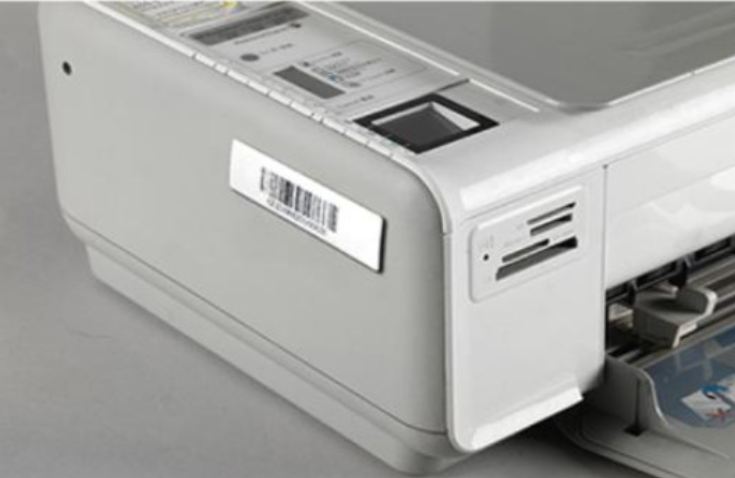

On metal labels can be generated on demand and are applicable on flat and curved metal surfaces i.e.
tools, IT assets, appliances, machinery and other indoor assets
