Long read range UHF PC on metal tag OMT8724 , 9 meter read range , IP68 water proof on metal tag , 860 - 960MHz
On-Metal Tag OMT8724 is mainly used for asset management and can be directly attached or fixed with screws on the metal surface. Its steady shock resistant,waterproof, dustproof performance makes it suitable for metal shelf warehousing management and other asset management.
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | R6P |
| Memory | EPC 128bits,USER 0bits,TID 96bits |
| Application surface | Metal surface/Non metal surface |
| Mounting way | Screw or 3M adhesive |
| Read range | Metal surface:Up to 9 meter by fixed reader; Up to 6 meter by handheld reader Non metal surface:Up to 5 meter by fixed reader; Up to 3 meter by handheld reader |
| Frequency | 860-960MHZ |

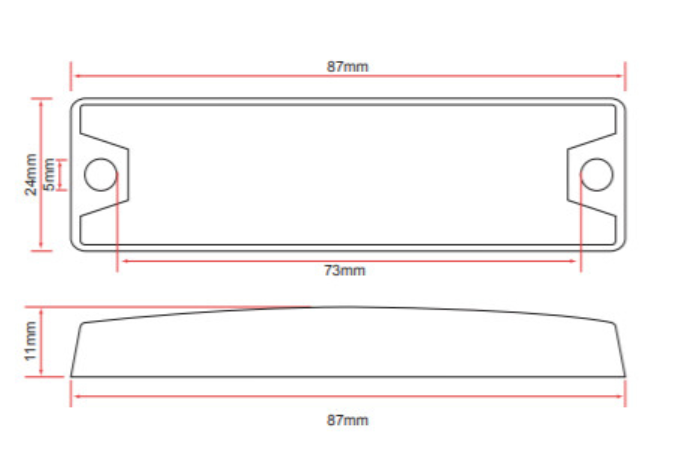

| Size | 87*24*11 mm, hole size:5mm |
| Weight | 19 G |
| Material | PC |
| Color | Black or customized |
| IP Rating | IP68 |
| Storage temp | -40℃ to 70 ℃ |
| Operation temp | -40℃ to 70 ℃ |
| Warranty | 1 Year |
