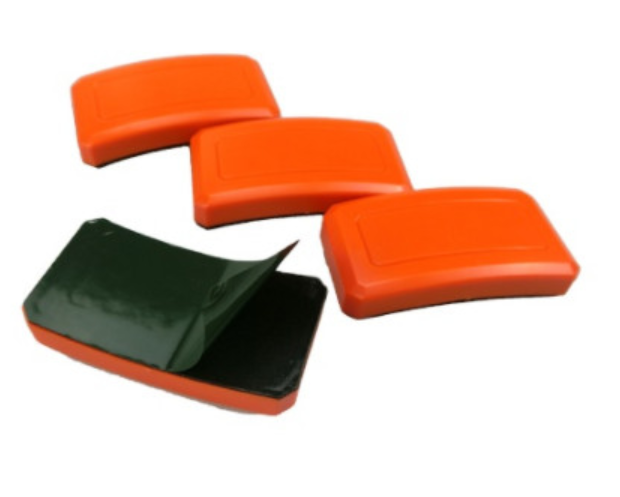

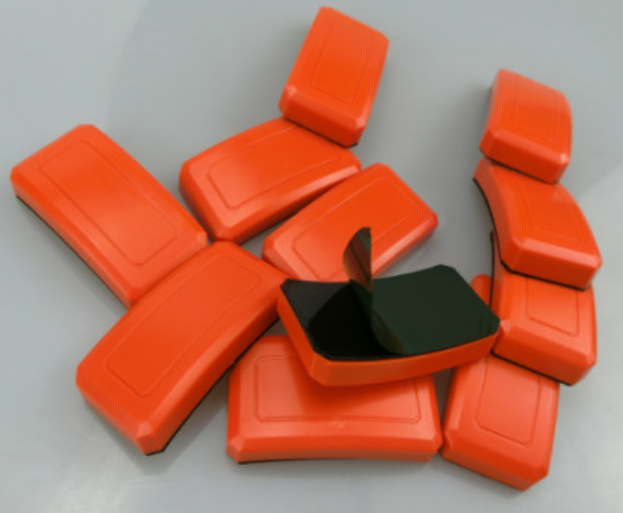

62mm Electronic RFID Gas Cylinder Tag UHF Metal Tag Long Reading Range OMT6232

  • The product name:62mm Electronic RFID Gas Cylinder Tag UHF Metal Tag Long Reading Range OMT6232
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:45:27
  • CONTACT

Product Description


Long reading range 860 to 960Mhz On Metal asset Tracking / UHF RFID Gas Cylinder Tag OMT6232 , RFID cylinder tag



UHF gas cylinder electronic tag is mainly used on the surface of metal objects, and has the functions of anti-vibration, anti-magnetic, moisture-proof, anti-corrosion and durability. Generally used in the management of metal equipment and special equipment such as electronic equipment, asset maintenance, gas cylinders, elevator maintenance, auto parts, high-pressure boilers, high-pressure vessels, high-pressure pipelines, lifting machinery, amusement facilities, etc., can be customized in various shapes and sizes. The following are the shapes involved for gas cylinders.





Main advaes:



 Good RF performance on both metal and non-metallic surfaces;

100% tested by the European Union's label compliance test system;

100% passed the memory write test;

 Material and design are tested for reliability;

 Verified and use by well-known domestic and international customers;





Applications:



 Storage shelves and locomotive management;

 IT facility chassis management;

 Management of large and medium-sized metal containers; power box and power facility management;

 Management of office equipment and facilities with metal enclosures indoors and outdoors;

 Cement building wall or column management (built-in);

 Personnel inspection management;





Performance Specifications
ModelOMT6232
ProtocolISO 18000-6C(EPC gen2)
Frequency Range902MHz-928MHz or 865MHz-868MHZ
Chip typeMonza4 QT
Working modeRead and Write
Reading distance5m-8m (related to reader and antenna)
Data Memory time50 years
Write times100000 times
Anti-collisionYes
Physical Specification
Dimension62mm *32mm* 10mm
Installing hole sizeThe Installing hole diameter for product fixing is 4.03mm, the centering distance of the Installing hole is 76.5mm
Base materialABS/polymer material
Installing mode
Working Temp-20℃~+120
Storage Temp-40℃~+150℃
Weight10g
