RFID on metal tag

IP66 Mould Passive UHF Screw Tag Ceramic 304 Stainless Steel Fixture Management OMTT01

  • The product name:IP66 Mould Passive UHF Screw Tag Ceramic 304 Stainless Steel Fixture Management OMTT01
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:47:48
  • CONTACT

Product Description

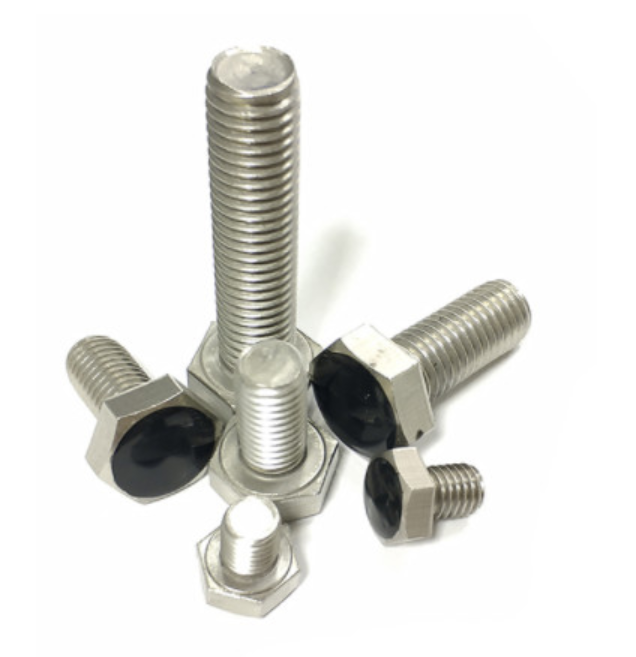

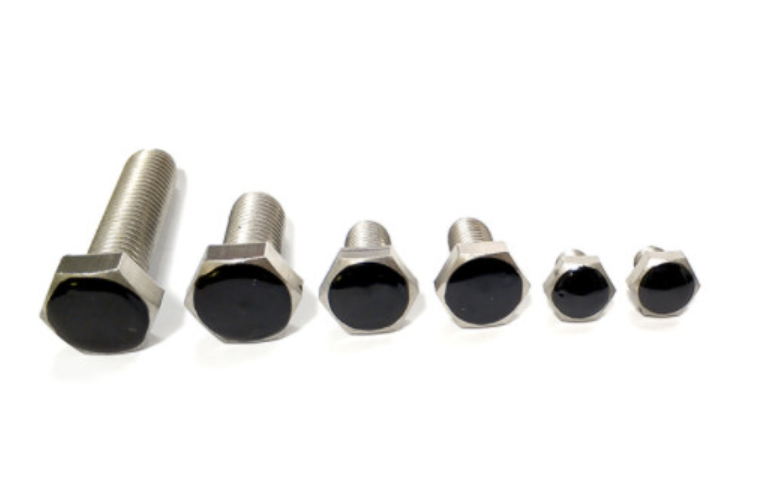

Passive UHF ceramic 304 Stainless Steel RFID Screw Tag for mould/fixture management , cement component tag



It can be used in the interior of cement components, the installation depth is about 3CM, and the water content affects the reading distance. Further after drying Read the composition. Building rebar will also affect the performance, not too close to avoid reading, normal test window bottom end





Item name:
Passive UHF ceramic 304 Stainless Steel RFID Screw Tag for mould/fixture management
Chip Protocol:
EPC Class1 Gen2,ISO 18000-6C
Working Frequency:
EU:865-868MHz or US:902-928MHz
IC Type:
Alien Higgs-3 etc
Memory:
EPC 96bit(up to 480bits),User 512bit, TID64bit
Functionality:
Read / write
Applicable Surface:
Metal Surfaces
Fixed reader read range (30dBm/8dBi):
80cm-US
Handheld reader read range (R2000/3dBi):
120cm-US
Physical Specification:
Dimension:
60mm*18.7mm*12mm
Material:
304 StainSteel
Mounting Methods:
Metal Embedded
Weight/piece:
50.6g
Environmental Parameter:
IP Rating:
IP66
Storage Temperature:
-40degree to +150 degree
Operation Temperature:
-40degree to +180 degree
