RFID on metal tag

130*42*10.5mm RFID On Metal Tag Outdoor Higgs 4 Chip 30m Read Range OMT042

  • The product name:130*42*10.5mm RFID On Metal Tag Outdoor Higgs 4 Chip 30m Read Range OMT042
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:49:17
  • CONTACT

Product Description

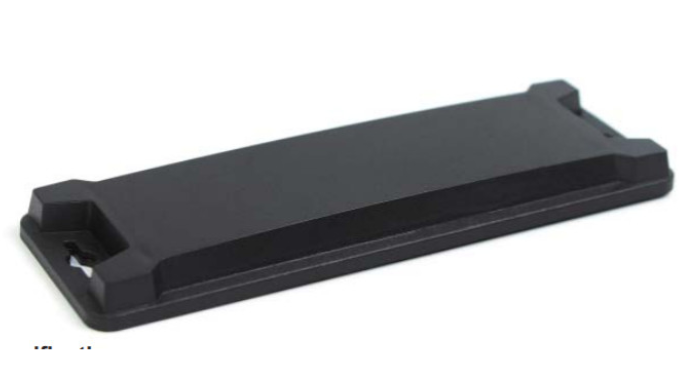

Long read range on metal tag OMT042 , up to 30 meter read range , IP68 for outdoor , waterproof tag



OMT042 RFID tag has an operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which provides industry-leading performance and up to a 30 meters read range. The tag is IP68-rated, making it suitable for harsh outdoor environments as well as exposure to water and contaminants. it has an operating temperature range of -20°C to +80°C), and can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.


Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipH3
MemoryEPC 96bits,USER 512bits,TID 96bits
Application surfacemetal surface
Mounting wayScrew or 3M adhesive
Read rangeUS frequency :Up to 30 meter by fixed reader; Up to 18 meter by handheld reader
EU frequency :Up to 18 meter by fixed reader; Up to 8 meter by handheld reader
Frequency860MHZ to 869MHZ/902MHZ to 928MHZ

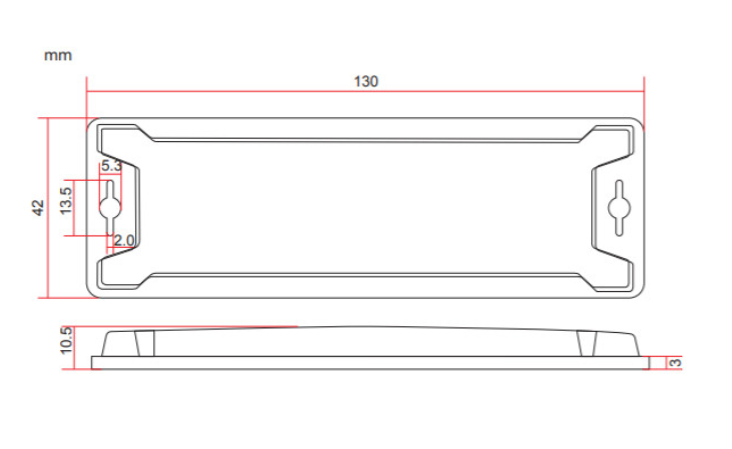

Size130*42*10.5 mm
Weight40 G
MaterialPC
IP RatingIP68
Storage temp-40℃ to 80
Operation temp-40℃ to 60
Warranty1 Year
