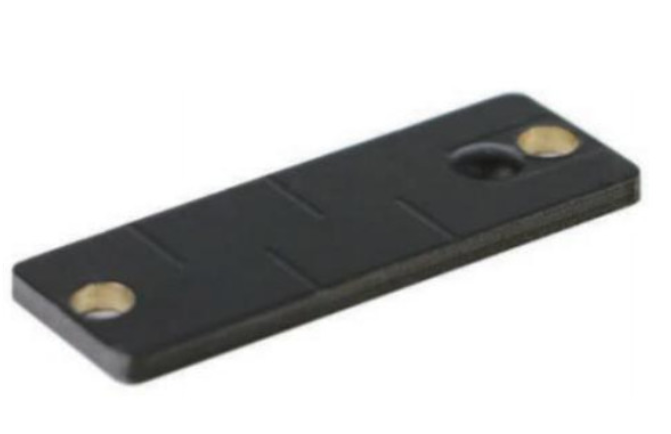

RFID Industrial grade high temperature on metal tag OMT4215 , RFID UHF on metal tag , Black color on metal tag
The tag is especially designed for Industrial grade high temperature environment ,it can stand the highest temperature 280℃ ,it is suitable for harsh environment application in manufacturing.
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | H4 |
| Memory | EPC 96bits,USER 512bits,TID 96bits |
| Application surface | Metal surface |
| Mounting way | 3M adhesive or Screw |
| Read range | Metal surface:Up to 6.5 meter by fixed reader; Up to 3.5 meter by handheld reader |
| Frequency | 865～868( EU) /902～928( US) |
| Size | 42*15MM, Thickness 2MM , Hole 4MM*2 |
| Weight | 2.2 G |
| Material | High temperature resistant material |
| Color | Black |
| IP Rating | IP68 |
| Storage temp | -40℃ to 180 ℃ |
| Operation temp | -40℃ to 280℃(280℃ for 50minutes, 250℃ for 150minutes) |
| Warranty | 1 Year |
