RFID on metal tag

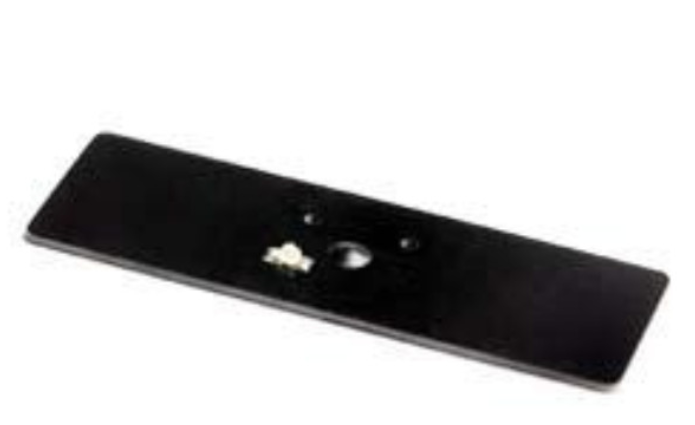

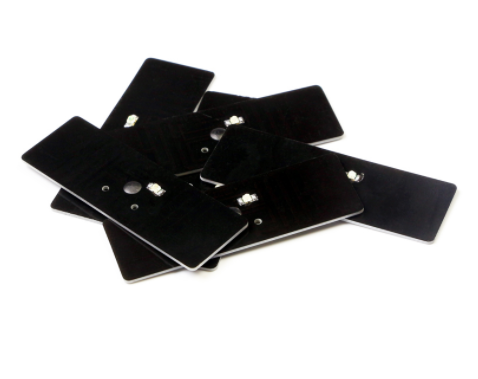

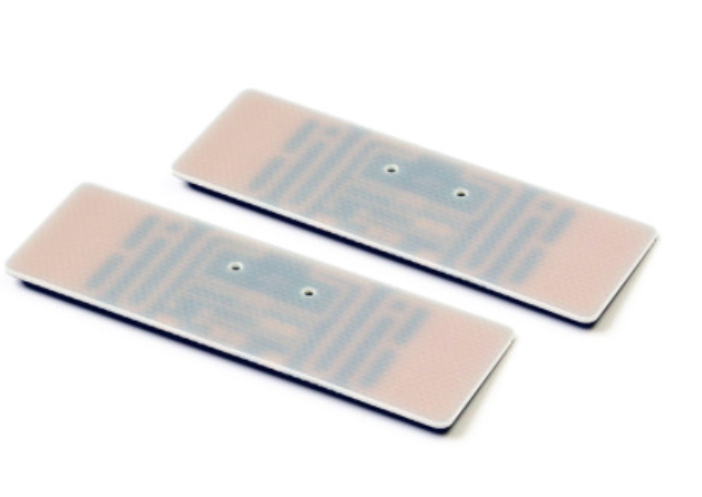

60x20mm RFID On Metal Tag With LED Light For Non And On Metal Surface 902-928MHZ HAT6020/OMT6020

  • The product name:60x20mm RFID On Metal Tag With LED Light For Non And On Metal Surface 902-928MHZ HAT6020/OMT6020
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:52:03
  • CONTACT

Product Description


UHF RFID with Light for Non-metal Surface or on metal surface , UHF RFID tag with Light OMT6020/HAT6020



This tag is developed with light in it,when it is read by reader,the light will blink. so it is easy to be found,can be widely used in shelf/warehousing management and other asset management.



These two tag are passive RFID tags with LED indicator that can be turned on through RF command allowing quick and easy visual identification of a specific tag among several others.
LED RFID Tags does not require any kind of maintenance and can be used in situations where batteries are not recommended.
RFID LED tags are normally used for long range RFID asset locating, asset tracking, RFID logistics and warehouse management applications.





Specifications HAT6020 OMT6020

ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipXBL2005-KX
MemoryEPC 128bits;User 1312 bits, ;TID 96bits
EncodingOnly can be encoded for one time
How to find tagInput the needed tag EPC number in reader and scan
Data retention50 years
Application surfaceNon-metal surfaceMetal surface
Mounting way3M adhesive
Read rangeUp to 9 meter by fixed reader; Up to 6 meter
by handheld reader;Light blink in 3 meter by
handheld reader
Up to 7.5 meter by fixed reader; Up to 5 meter by
handheld reader;Light blink in 3 meter by
handheld reader
Frequency902MHZ to 928MHZ(US)
Size60.0x20.0x1mm60.0x20.0x3mm
Weight2.5 G7.5 G
MaterialFR4
IP RatingIP67
Storage temp-20℃ to 80
Operation temp-20℃ to 80
Warranty1 Year


60x20mm RFID On Metal Tag With Light For Non And On Metal Surface 902-928MHZ 0
