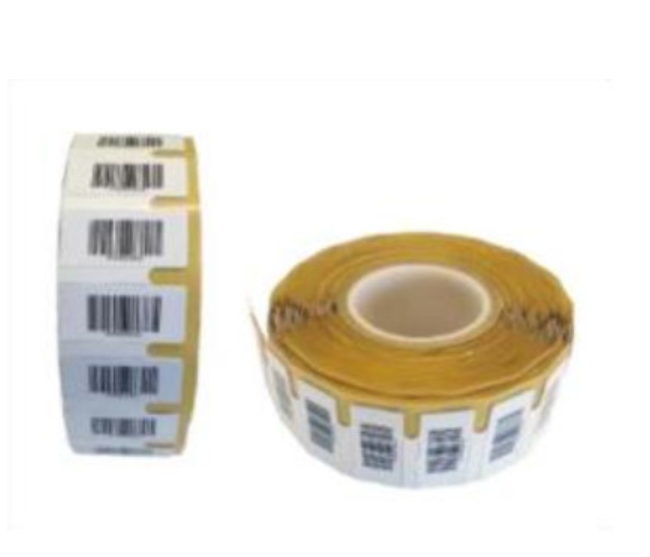

Flexible 70x25x1mm Fragile UHF RFID On Metal Tag Passive White Color OMT007

  • The product name:Flexible 70x25x1mm Fragile UHF RFID On Metal Tag Passive White Color OMT007
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 18:53:50
  • CONTACT

Product Description


UHF Fragile and flexible on metal label OMT007 , Easy to install passive white color rfid tags , RFID metal label



OMT007 is an on-metal label with Fragile design by using fragile materials and fragile structure,so that the label is damaged in the tearing process after being affixed, protecting the label from illegal replacement purpose and suitable for flat or curved metal or other multi surfaces.Offered with preprint and encoding or blank to be printed and encoded on-demand using RFID enabled thermal transfer printers, it is an excellent option for indoor applications that demand user flexibility and affordability



Specifications
ProtocolISO/IEC 18000-6C & EPC global Class 1 Gen 2
ChipAlien HEC
MemoryEPC 128bits,USER 32bits,TID 48bits
Application surfaceMetal surface/Non metal surface
Mounting way3M adhesive
Read rangeMetal surface:Up to 8 meter by fixed reader; Up to 4 meter by handheld reader
Non metal surface:Up to 4 meter by fixed reader; Up to 2 meter by handheld reader
Frequency865868EU/902928US)

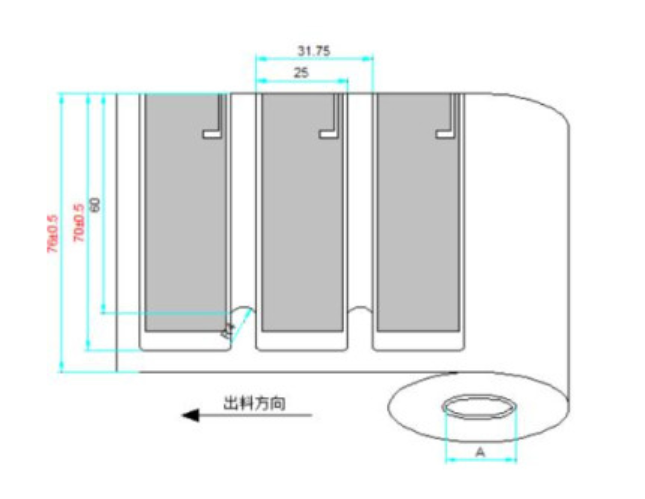

Size70x25x1mm
Weight0.5 G
MaterialPET or according to custom`s request
ColorWhite
IP RatingIP68
Storage temp-40℃ to 70
Operation temp-40℃ to 100
Warranty1 Year
